Navigation Data Interface Unit
NDIU
The Navigation Data Interface Unit receives 8-string navigation data and converts it into 1 Hz and 10 Hz outputs. An aluminium enclosure houses three output ports and an additional PCB selected through the front panel.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input | One independent input port; 8-string data input |
| Outputs | Three independent output ports: Output 1 at 1 Hz; Outputs 2 and 3 at 10 Hz |
| Discharge protection | ±10 kV |
| Data line protection | Short circuit protection |
| Enclosure | Compact, lightweight, portable aluminium box |
| Maximum dimensions | 273 × 200 × 55 mm |
| PCB redundancy | Additional PCB 2, selectable using the front-panel switch if PCB 1 is not working |
| Connectors | Aluminium / nickel / bronze alloy; Amphenol / Allied / equivalent. 3- and 5-pin male chassis-mount input connectors; 5-pin female chassis-mount output connectors. |
| Power supply | 230 V AC, 50 Hz, single phase; over-current and over-voltage protection |

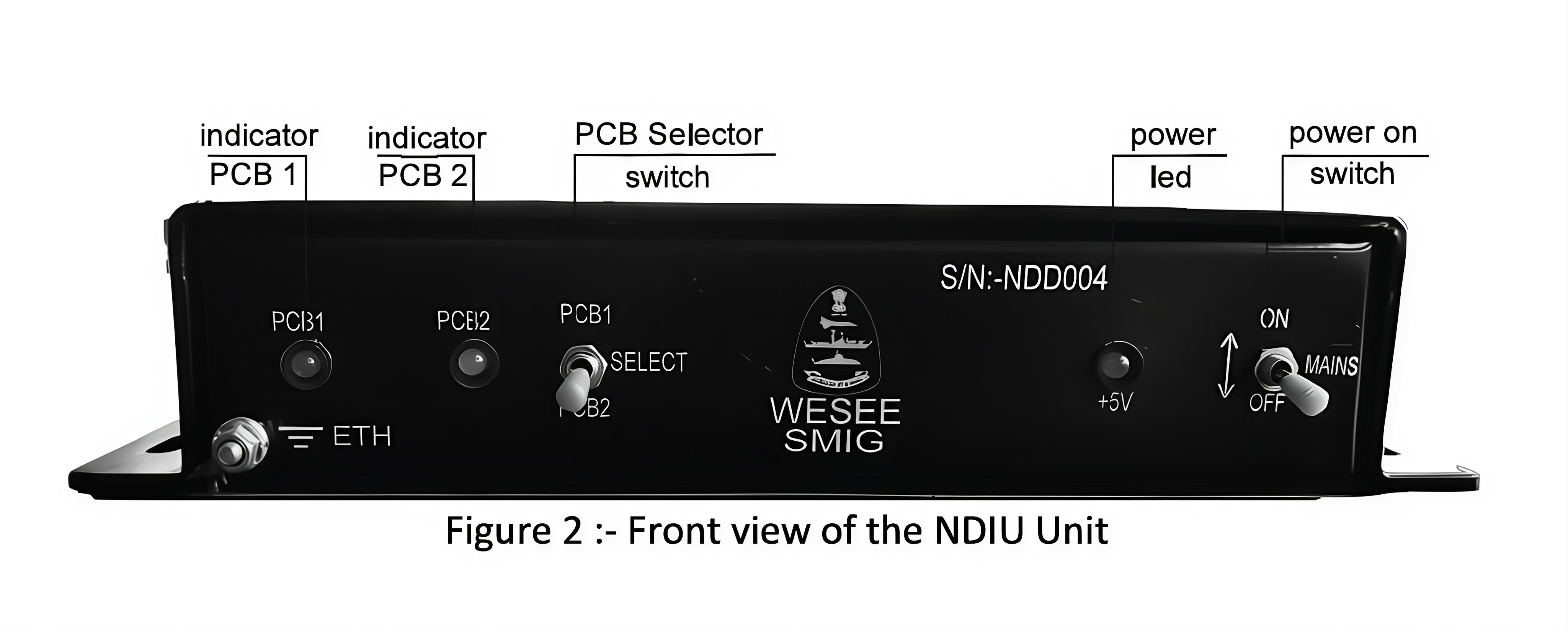

| Front panel | PCB 1 and PCB 2 indicators, PCB selector switch, power LED, power switch and earth connection |
| Rear panel | Data input, three data outputs, mains connector and fuse |
Connector Pin Assignments
| Connector | Pin A | Pin B | Pin C |
|---|---|---|---|
| Mains | Phase | Neutral | Earth |
| Input | A1/D+ | B1/D- | GND |
| Output 1 (1 Hz) | Y1/D+ | Z1/D- | GND |
| Output 2 (10 Hz) | Y2/D+ | Z2/D- | GND |
| Output 3 (10 Hz) | Y2/D+ | Z2/D- | GND |
Operating Procedure
- Connect power and input/output cables to the rear-panel cable-mount connectors.
- Check the fuse and replace it if blown or broken.
- Connect the earth terminal to the ship earth connection.
- Move the power switch lever upwards to switch on the unit.
- The power LED illuminates and data is available at Output 1 (1 Hz) and Outputs 2 and 3 (10 Hz).
- If PCB 1 is not working, select PCB 2 using the front-panel selector switch.
